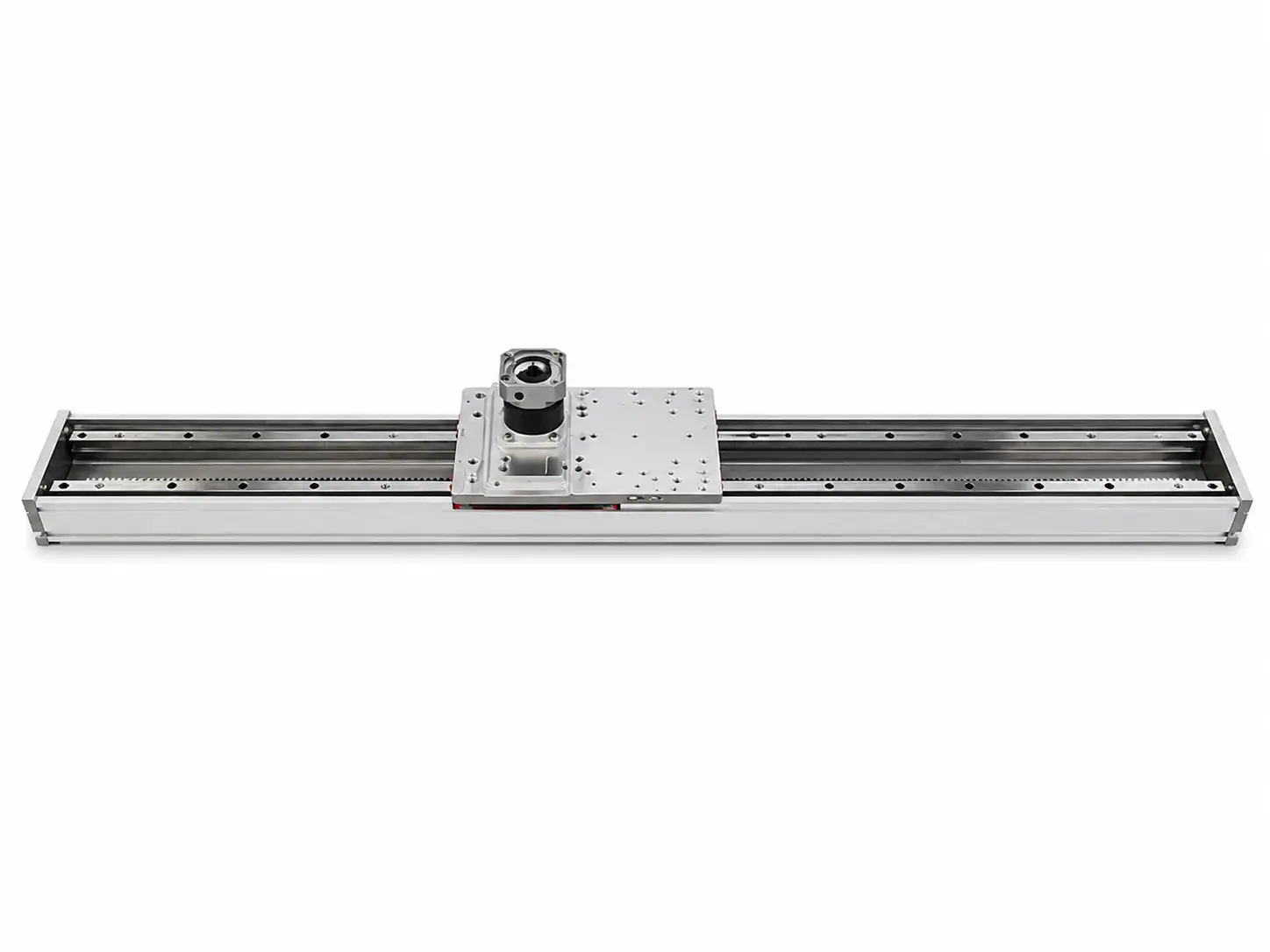

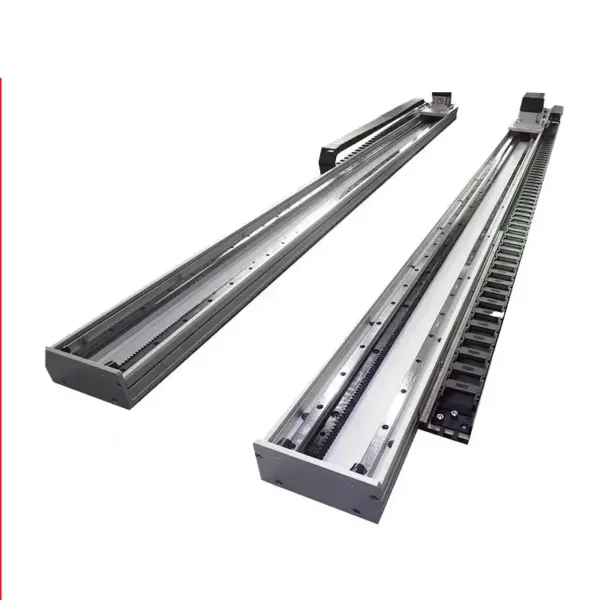

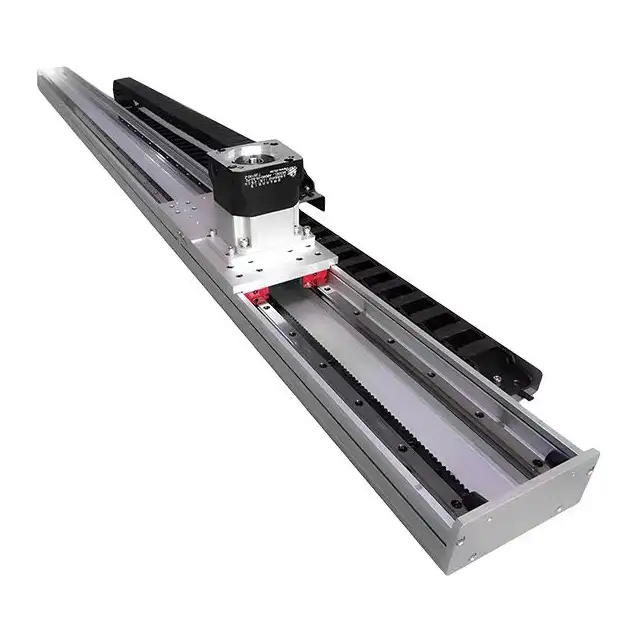

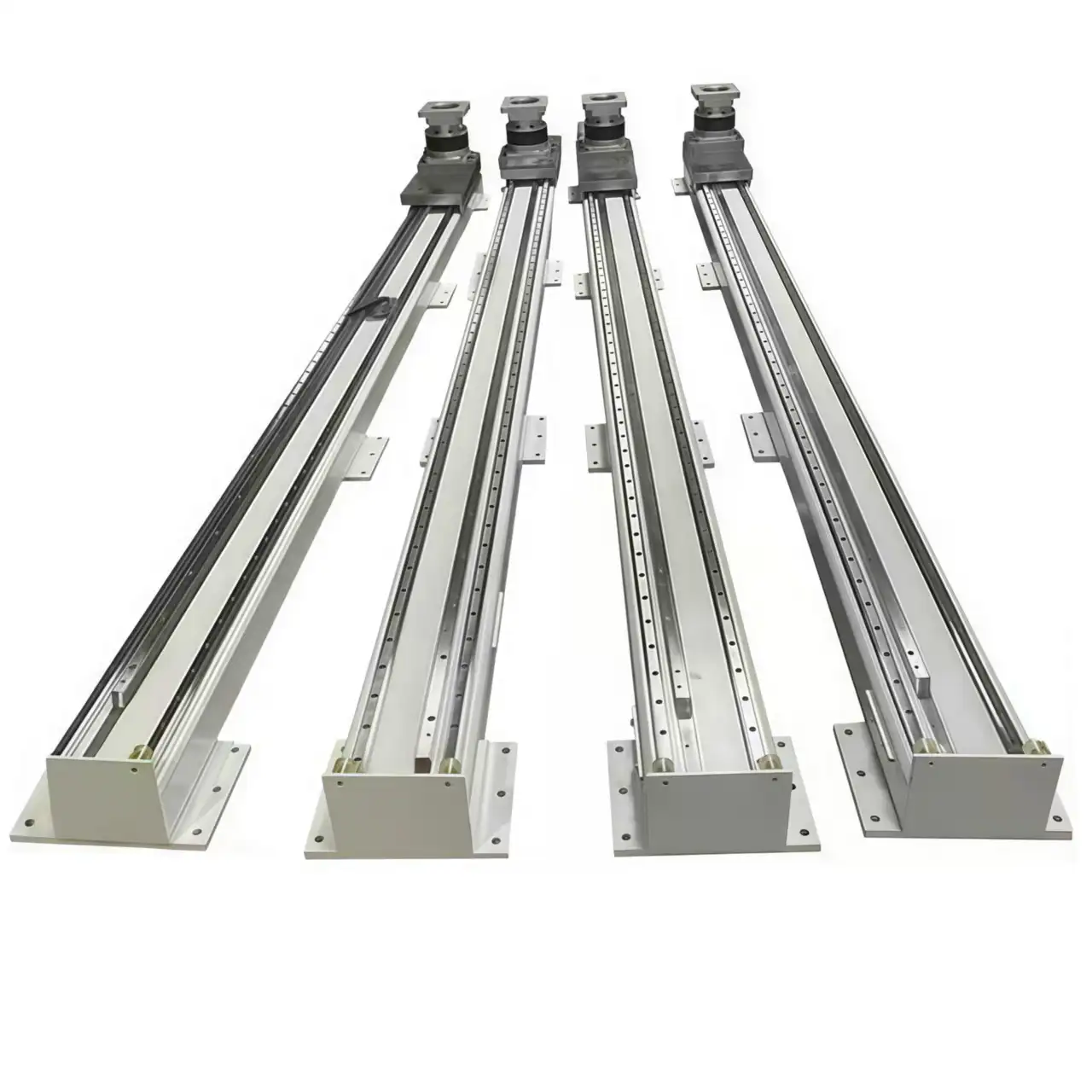

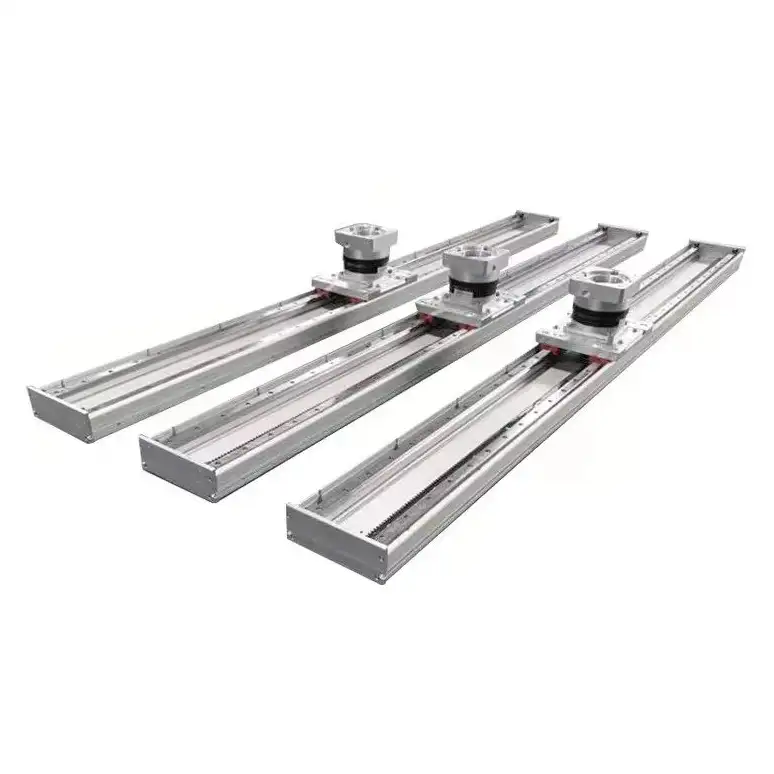

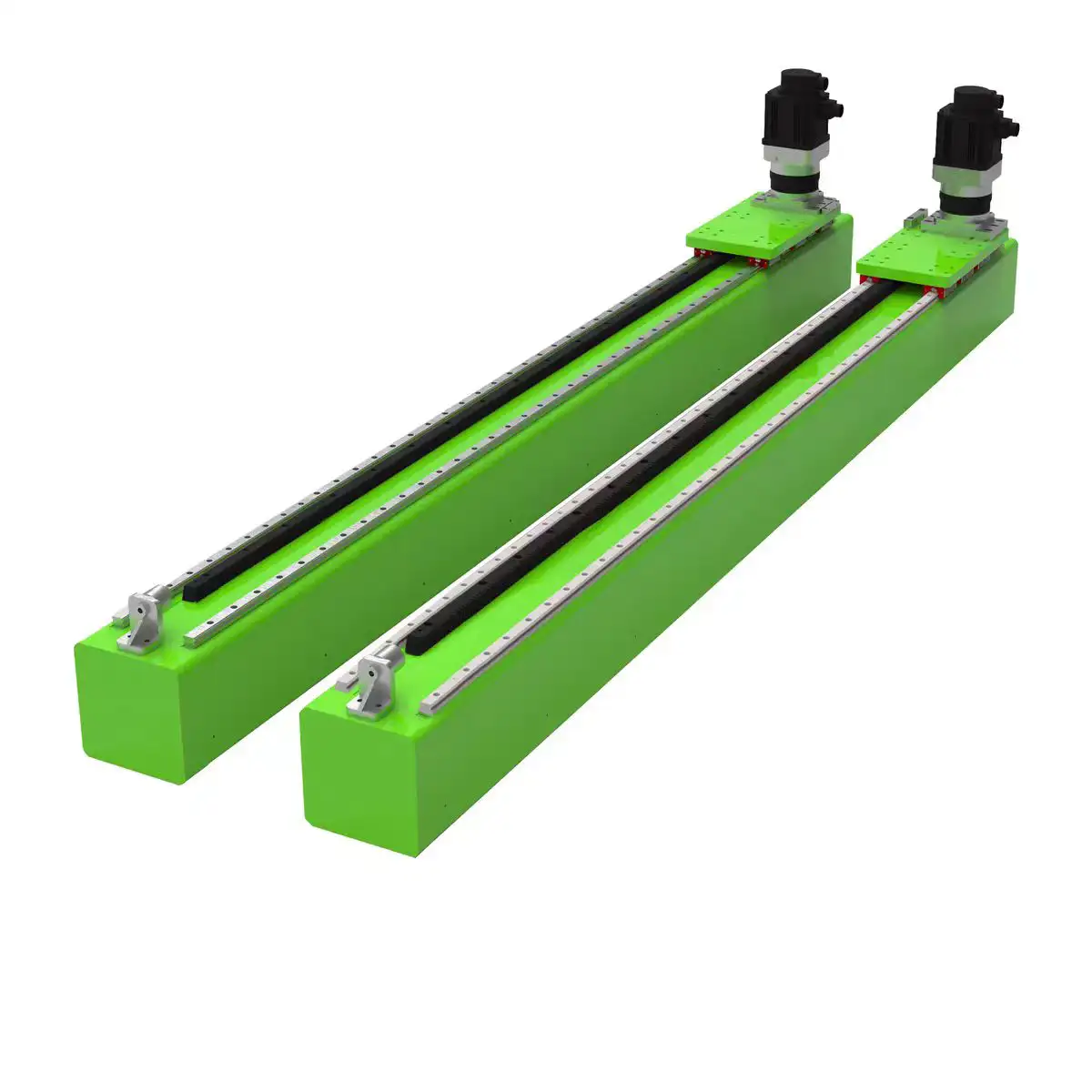

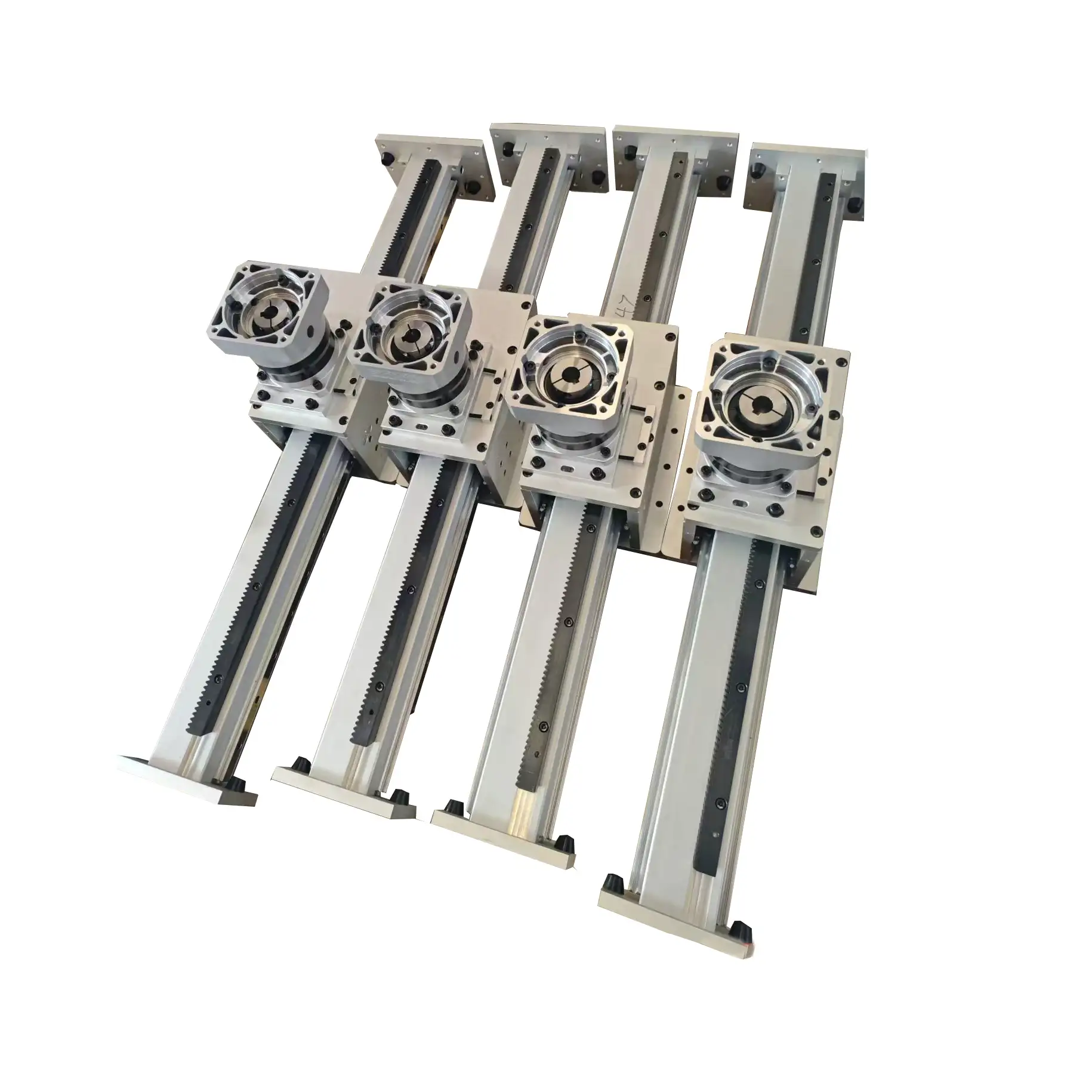

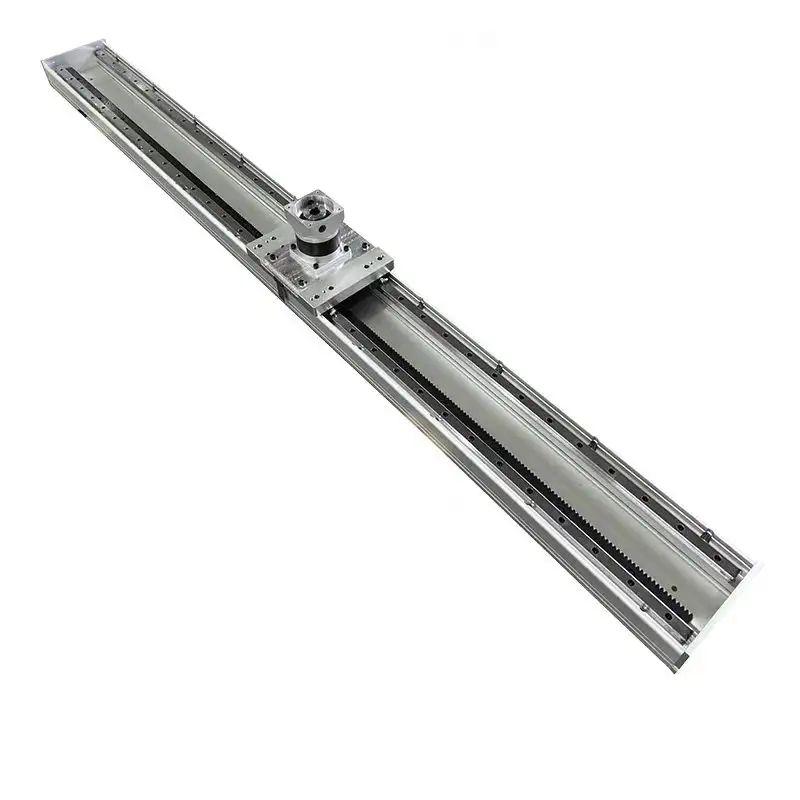

I. Core Structure
Rack: Long, toothed strip (alloy steel), fixed to the base, can be multi-segmented, with a stroke of tens of meters.
Gear (Pinus): Equipped with a servo/stepper motor and reducer, meshes with the rack to drive the slide.
Slide (Slide Base): Heavy-duty platform, holds the load, connected to a linear guide rail (roller type), providing stable guidance and high rigidity.
Drive and Backlash Elimination: Servo motor + planetary reducer + backlash elimination mechanism eliminates backlash, resulting in more accurate positioning.

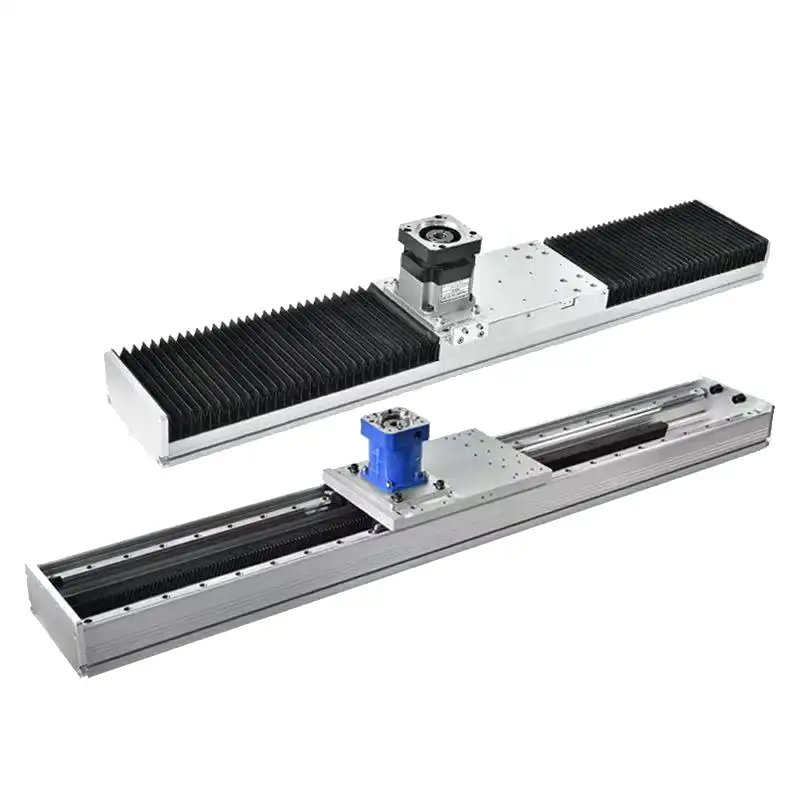

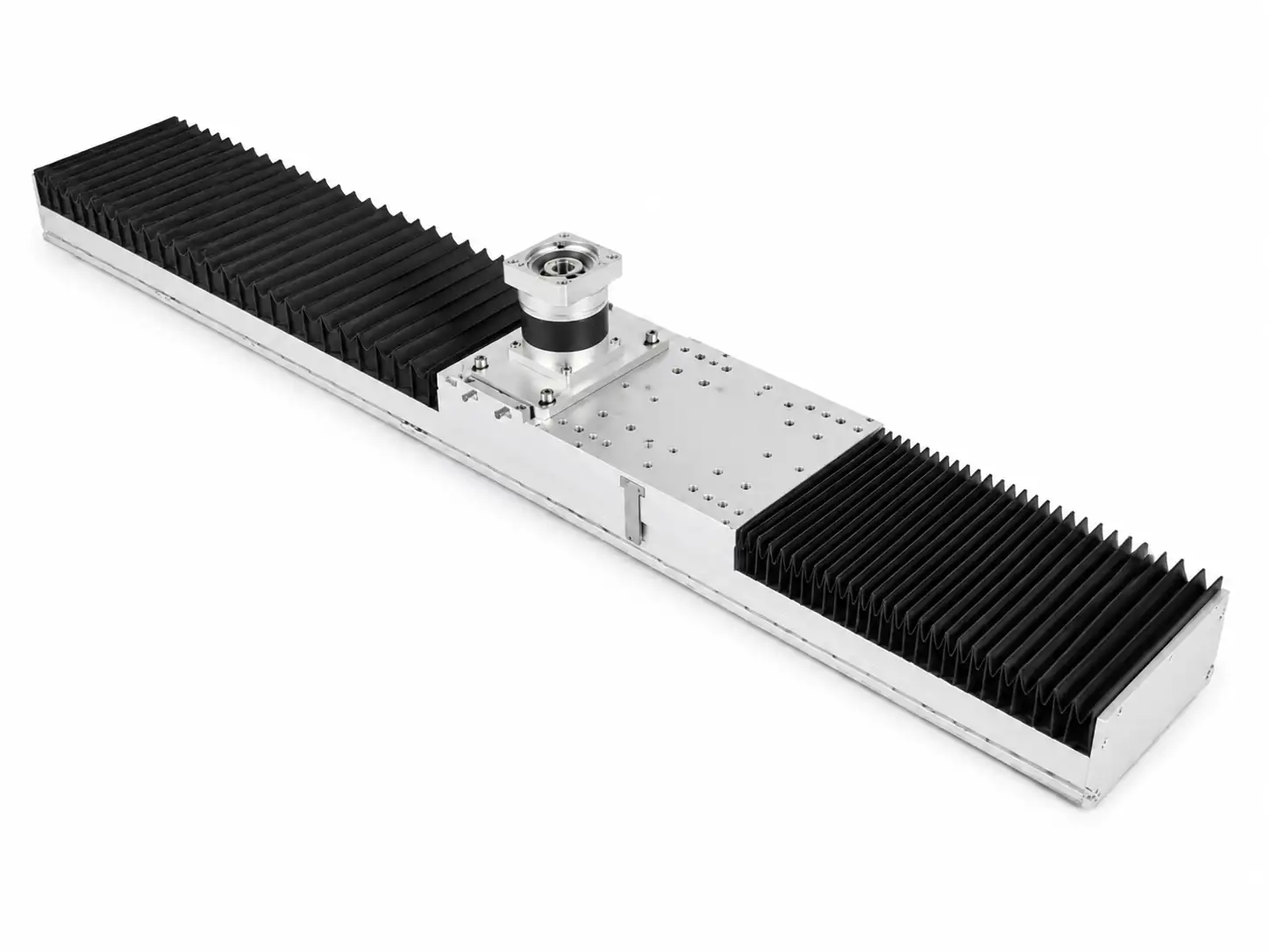

Protection: Bellows cover/sheet metal dustproof and weld slag-proof, suitable for harsh working conditions.
II. Working Principle
The rotation of the motor, reducer, and gear meshes with the fixed rack: the gear “walks,” driving the slide to perform linear reciprocating motion along the guide rail, converting rotational motion into linear motion.
III. Key Features
Heavy Load: Load capacity up to tons, high rigidity, and resistance to overturning torque. Long stroke: Spliced rack and pinion mechanism, unlimited stroke (3m/10m/20m+), no sag or vibration.
High speed: 1-2m/s, much faster than ball screws.
Durable: Wear-resistant, long lifespan, simple maintenance.
Accuracy: Repeatability ±0.05-±0.1mm, even higher with backlash elimination.
IV. Typical Applications
Gantry manipulators, robot seventh axis
Heavy-duty loading/unloading, welding/cutting platforms
Long-distance transfer, large machine tool slides
V. Comparison with other modules
Compared to ball screws: Longer stroke, higher load capacity, faster speed; slightly lower accuracy, higher cost.
Compared to timing belts: Stronger rigidity, higher load capacity, no slippage; slightly higher noise, requires regular lubrication.
