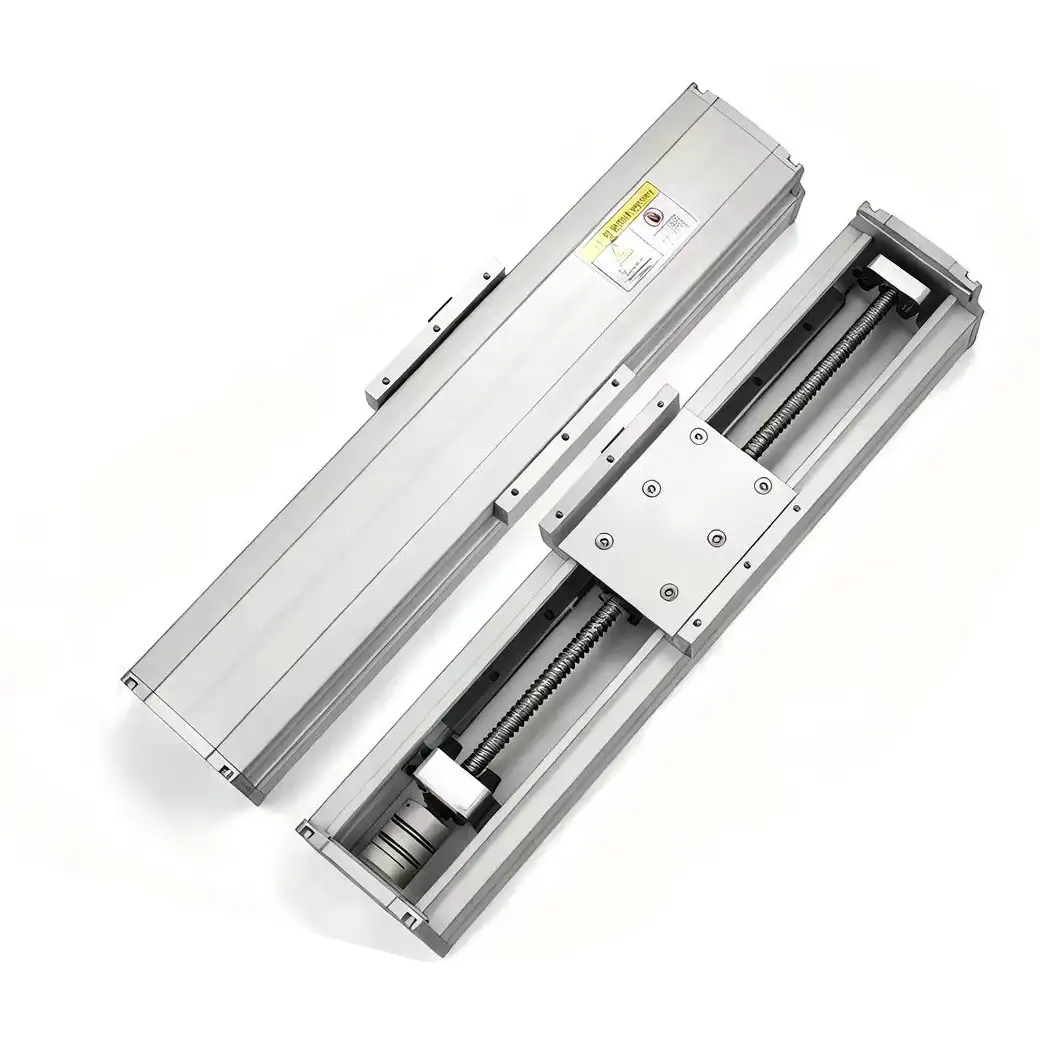

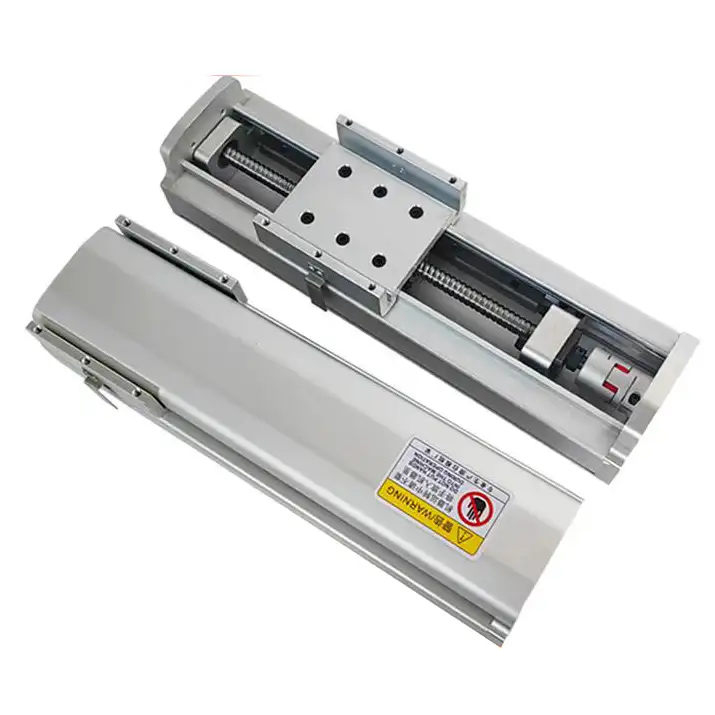

I. Core Components
1. Ball Screw: The core transmission component, wear-resistant and with high transmission efficiency, determining positioning accuracy and load capacity;
2. Linear Guide Rail: Responsible for guidance, ensuring smooth slide operation and even force distribution;
3. Slide Base: Used to mount workpieces, fixtures, or robotic arms, etc.
4. Drive Components: Servo/stepper motor, coupling, bearing housing, providing power;
5. Outer Cover/Dustproof Accessories: Dust cover, sealing strip, protecting the ball screw and guide rail, extending service life.
II. Working Principle
The motor drives the ball screw to rotate, and the screw nut rotates linearly, synchronously driving the slide to slide smoothly along the guide rail, completing precise linear conveying, positioning, and transfer actions.
III. Main Features
High Precision: Repeat positioning accuracy up to ±0.03mm, suitable for precision machining, inspection, and sorting scenarios;
Smooth Operation: Smooth transmission, low noise, and good start-stop buffering;
Strong Self-Locking: Not easy to slip after power failure, high load safety;
Moderate Load: Suitable for light and medium load conditions, not suitable for ultra-heavy loads;
Limited Stroke: Long stroke is prone to lead screw sag and vibration, generally used for short and medium strokes.
IV. Applicable Scenarios
Precision robotic arms, inspection equipment, dispensing machines, small transfer mechanisms, automated machine tools, 3C electronics production lines, laser equipment, and other precision automation equipment.
